Hardness Testing Fixture Block
Hardened steel V-block fixture for securing test specimens during Rockwell and Brinell hardness testing. Designed for stable, repeatable clamping in QC labs.
Send RFQ FileProduct Detail
Hardness Testing Fixture Block

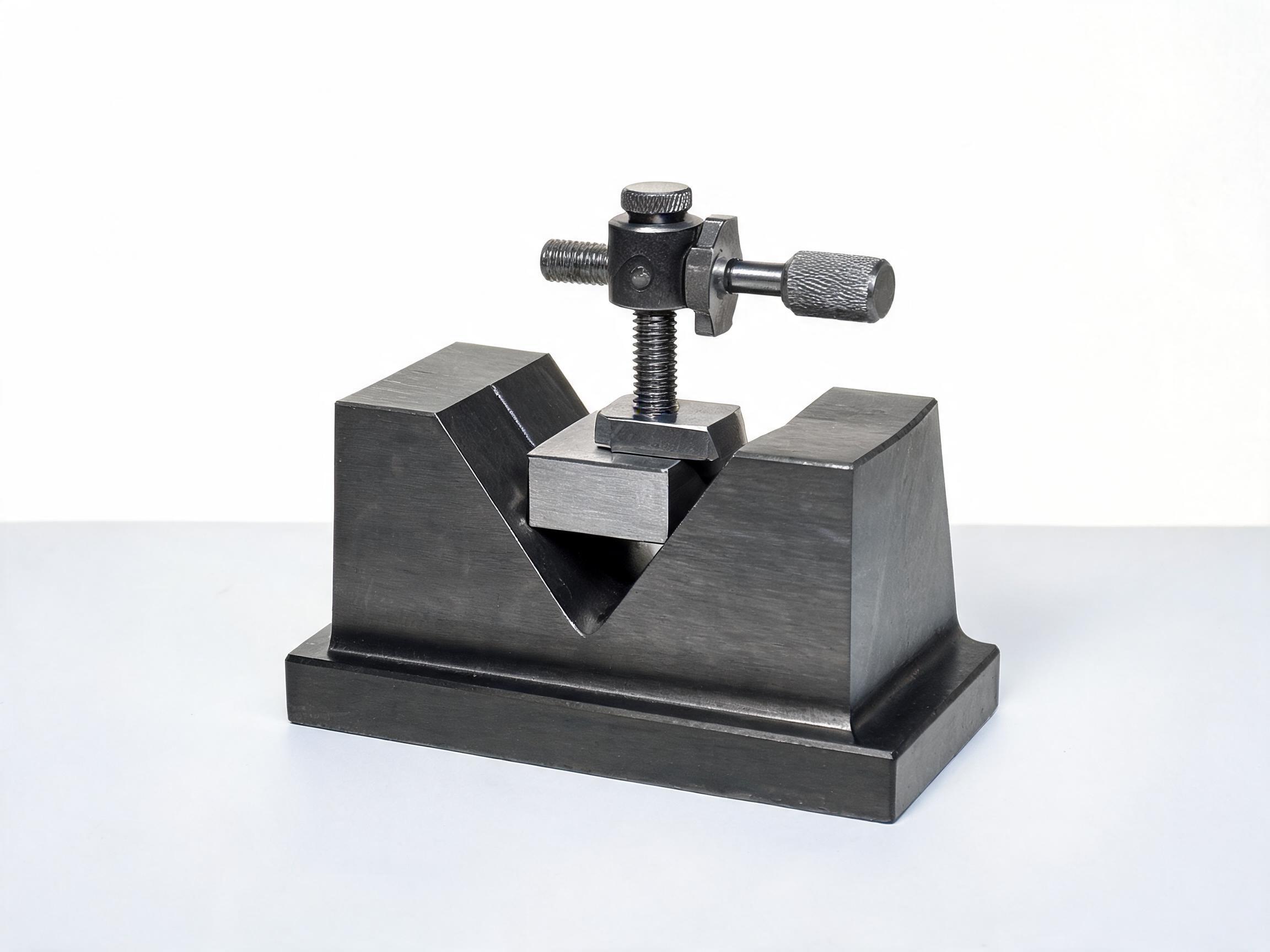

A hardened steel V-block fixture engineered to hold metal test specimens securely during Rockwell, Brinell, and Vickers hardness testing. The precision-ground V-groove accommodates round and flat specimens, while the screw-operated clamping mechanism ensures the workpiece stays immobile under indenter load—critical for accurate, repeatable hardness readings.
Product Overview
In hardness testing, even microscopic specimen movement can skew readings and damage indenters. This fixture block addresses that problem with a rigid V-block design that seats the specimen firmly, combined with a screw-driven clamp that applies controlled holding force without deforming soft materials. The hardened steel construction withstands repeated clamping cycles and indenter proximity without surface degradation.
Specification Table
| Parameter | Specification |
|---|---|
| Material | Hardened tool steel (HRC 55-60) |
| V-Block Size | 50 x 50 x 40 mm (standard); custom sizes available |
| V-Groove Angle | 90 degrees |
| Clamping Mechanism | Screw-operated with knurled adjustment knobs |
| Surface Finish | Ground, Ra 0.8 micrometer |
| Max Specimen Diameter | Up to 40 mm (round); up to 50 mm (flat) |
| Base Mounting | Threaded holes for bench or machine table mounting |
| Compatibility | Rockwell, Brinell, and Vickers hardness testers |
Key Features
- Hardened steel V-block with 90-degree precision-ground groove for stable specimen seating
- Screw-operated clamping with knurled knobs for controlled, repeatable holding force
- Versatile specimen accommodation — holds both round bars and flat plates up to 50 mm
- Ground surface finish (Ra 0.8 micrometer) prevents marring of test surfaces
- Bench-mountable with threaded holes for rigid fixture on any test platform
Product Advantages
- Reading accuracy: Secure clamping eliminates specimen shift that causes false readings and indenter damage
- Durability: HRC 55-60 hardened steel resists wear and deformation through thousands of test cycles
- Adaptability: Single fixture handles multiple specimen geometries without accessory changes
- Operator efficiency: Quick-load clamping reduces setup time between consecutive tests
Applications
- Quality control labs performing incoming material hardness verification
- Heat-treatment shops validating case depth and surface hardness
- Metallurgical laboratories conducting routine hardness surveys
- Production lines requiring 100% hardness checking of critical components
Company Background
Zhuhai ChunTian Machine Technology Co., Ltd. has specialized in precision sheet metal fabrication and CNC machining since 2009. Our IATF 16949:2016-certified facility operates with a structured quality workflow including drawing review, tolerance risk assessment, sample gate approvals, and FAT documentation. This fixture block is manufactured to the same quality standards applied across our full product range.
FAQ
Can the V-block accommodate non-standard specimen sizes?
Custom V-block dimensions can be manufactured. Please provide your specimen dimensions and testing requirements through the inquiry form.
Is the fixture compatible with benchtop hardness testers?
The standard base includes threaded mounting holes for common bench and machine table configurations. Confirm your tester's mounting interface with us before ordering.ing.
What is the lead time and minimum order quantity?
Lead time and MOQ depend on your specifications and quantity. Please submit your requirements through the inquiry form for a detailed quotation.
Request a Quote
Tell us your specimen sizes, tester model, and required quantity. We will respond with a tailored quotation within one business day.
Request Product Details
