BUYER GUIDE
Precision Sheet Metal Fabrication: A B2B Buyer's Guide to Tolerances, Materials, and Quality Standards
• Tolerance classes range from ±0.1mm (high-precision) to ±0.5mm (general fabrication). Know which class your assembly requires before quoting.
• Material selection directly affects cost, corrosion resistance, and weldability. Steel, stainless, and aluminum each have distinct trade-offs.
• Certifications such as ISO 9001, EN 1090, and IPC-A-610 are not optional—they are the baseline for supplier qualification.
• A structured supplier assessment checklist can reduce rework by 30–50% in the first year of engagement.
If you are sourcing precision sheet metal fabrication for enclosures, brackets, chassis, or structural assemblies, the difference between a reliable partner and a problematic one often comes down to three things: tolerance control, material consistency, and adherence to recognized quality standards.
This guide is written for procurement engineers, sourcing managers, and technical buyers who need to evaluate custom sheet metal fabrication suppliers. It gives you the specific criteria—not vague advice—to make an informed decision.
1. Understanding Tolerances in Precision Sheet Metal Fabrication
Tolerance is the allowable variation in a dimension. In sheet metal manufacturing, it is not a single number. It depends on the process, material thickness, part geometry, and the supplier's equipment.
1.1 Tolerance Classes for Sheet Metal Parts
| Tolerance Class | Typical Range | Common Applications | Process Requirements |
|---|---|---|---|
| High Precision | ±0.1mm to ±0.2mm | Medical devices, aerospace brackets, precision electronics enclosures | CNC laser cutting, precision press brake, dedicated tooling |
| Standard Precision | ±0.2mm to ±0.3mm | Industrial control panels, telecom chassis, automotive components | Laser or plasma cutting, standard press brake, good fixturing |
| General Fabrication | ±0.3mm to ±0.5mm | Structural supports, ductwork, machine guards, enclosures | Plasma cutting, manual bending, less critical fits |
1.2 What Drives Tolerance Capability?
- Equipment: A supplier using 6kW fiber laser cutters and CNC press brakes with angle measurement systems can hold ±0.15mm consistently. Older manual machines may drift to ±0.4mm.
- Material Thickness: Thinner materials (0.5mm–2.0mm) are easier to hold tight tolerances. Thicker materials (6mm+) introduce springback and heat distortion.
- Part Complexity: A simple flat part with two bends is easier to control than a multi-bend chassis with 12+ features.
- Inspection Method: Suppliers using CMM (coordinate measuring machine) or laser scanners can verify tighter tolerances. Those relying on calipers only may miss drift.
1.3 Buyer Action: What to Ask
When you request a quote for custom sheet metal fabrication, ask the supplier:
- "What is your standard tolerance for this part geometry?"
- "Do you have a CMM or laser scanner for first-article inspection?"
- "What is your tolerance capability for holes, flanges, and bend angles separately?"
2. Material Selection: Matching the Alloy to the Application
Material choice is a cost-performance trade-off. The wrong material can cause premature corrosion, welding failure, or excessive weight.
2.1 Common Materials in Sheet Metal Manufacturing
| Material | Key Properties | Typical Thickness Range | Cost Index | Common Applications |
|---|---|---|---|---|
| Cold Rolled Steel (CRS / SPCC) | Good surface finish, moderate strength, requires paint or plating | 0.5mm – 3.0mm | 1.0 (baseline) | Enclosures, brackets, interior panels |
| Hot Rolled Steel (HRS / SPHC) | Lower cost, rougher surface, used where appearance is not critical | 1.5mm – 6.0mm | 0.8 | Structural supports, machine bases, heavy guards |
| Stainless Steel 304 | Excellent corrosion resistance, good weldability, food-grade | 0.5mm – 4.0mm | 2.2 – 2.8 | Food processing equipment, medical devices, marine hardware |
| Stainless Steel 316 | Superior corrosion resistance (chloride environments), higher cost | 0.5mm – 4.0mm | 3.0 – 3.8 | Chemical plant, offshore, pharmaceutical |
| Aluminum 5052 | Good strength-to-weight ratio, excellent formability, corrosion resistant | 0.6mm – 4.0mm | 1.8 – 2.4 | Transportation, electronics enclosures, architectural panels |
| Aluminum 6061 | Higher strength than 5052, less formable, good for structural parts | 1.0mm – 6.0mm | 2.0 – 2.6 | Brackets, frames, aerospace components |
| Galvanized Steel (SGCC / DX51D) | Zinc coating for corrosion resistance, lower cost than stainless | 0.5mm – 3.0mm | 1.2 – 1.5 | HVAC, outdoor enclosures, electrical cabinets |
2.2 Material Selection Pitfalls
- Using stainless steel when galvanized would suffice: Adds 30–50% material cost with no benefit in non-corrosive indoor environments.
- Specifying aluminum 6061 for a deep-drawn part: 6061 has lower elongation (10–12%) compared to 5052 (18–20%), leading to cracking during forming.
- Ignoring galvanic corrosion: When aluminum and stainless steel are in direct contact in a wet environment, you need a barrier (e.g., nylon washer, coating) to prevent galvanic corrosion.
2.3 Buyer Action: What to Ask
- "What material grade do you recommend for this application, and why?"
- "Do you stock the material, or is it a special order? What is the lead time impact?"
- "Can you provide a material certificate (MTC) for each production batch?"
3. Quality Standards: What Certifications Actually Mean
A supplier's quality system is not just a logo on their website. It is a set of documented processes that affect every part you receive.
3.1 Key Standards for Sheet Metal Manufacturing
| Standard | Scope | What It Covers | Relevance to Buyers |
|---|---|---|---|
| ISO 9001:2015 | Quality management system | Process control, documentation, corrective action, continuous improvement | Baseline requirement. Ensures consistent quality, not necessarily high precision. |
| EN 1090 | CE marking for steel structures | Welding qualification, material traceability, structural integrity | Mandatory for structural parts sold in Europe. Covers load-bearing assemblies. |
| IPC-A-610 | Acceptability of electronic assemblies | Solder joints, component placement, cleanliness | Relevant if your sheet metal parts are part of an electronic enclosure with PCB mounting. |
| AWS D1.1 / D1.6 | Welding standards (steel / stainless) | Weld procedure qualification, operator certification, inspection criteria | Critical for welded assemblies. Ask for WPS (Weld Procedure Specification) and welder certificates. |
3.2 Beyond Certifications: What to Inspect
Even a certified supplier can deliver non-conforming parts. Here is what you should check on first articles and periodic shipments:
- Surface finish: Scratches, die marks, burrs, or discoloration from heat.
- Hole position: Measure hole-to-edge and hole-to-hole distances. Use a go/no-go gauge if possible.
- Bend angle: Use a protractor or CMM. A 90° bend that is 88° or 92° will cause assembly issues.
- Flatness: Warpage is common in thin parts after welding or heat treatment. Specify flatness tolerance in your drawing.
- Edge condition: Burrs should be removed to a specified maximum height (e.g., 0.1mm max). Sharp edges should be deburred or chamfered.
3.3 Buyer Action: What to Ask
- "Do you have a documented first-article inspection (FAI) process? Can you share the FAI report for the first production run?"
- "What is your defect rate (PPM) for similar parts over the last 12 months?"
- "What is your corrective action process if a non-conformance is found?"
4. Supplier Assessment Checklist for Precision Sheet Metal Fabrication
Use this checklist when evaluating a new precision sheet metal fabrication partner. Score each item on a scale of 1 (poor) to 5 (excellent). A total score below 40 suggests the supplier may not be ready for high-volume or high-precision work.
| Category | Checklist Item | Score (1–5) |
|---|---|---|
| Equipment | Laser cutting (fiber vs. CO₂, power ≥ 3kW) | |
| CNC press brake with angle measurement system | ||

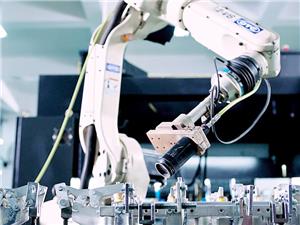

| Welding robots or certified manual welders | ||
| Inspection equipment (CMM, laser scanner, or at minimum digital calipers + protractor) | ||
| Process Control | ISO 9001:2015 certified (valid certificate, not expired) | |
| First-article inspection (FAI) performed on every new part | ||
| In-process inspection (operator checks at defined intervals) | ||
| Material traceability (MTC for each batch) | ||
| Quality Metrics | Defect rate < 500 PPM (or documented improvement plan) | |
| On-time delivery rate > 95% over last 6 months | ||
| Lead time for standard parts (e.g., 2–3 weeks) | ||
| Communication | Provides clear DFM (Design for Manufacturing) feedback | |
| Responds to RFQ changes within 48 hours | ||
| Shares production schedule or milestone updates |
5. Common Mistakes in Custom Sheet Metal Fabrication Procurement
5.1 Over-specifying Tolerances
Specifying ±0.1mm on every dimension when only critical features need it adds cost. A typical 10-feature bracket with all tolerances at ±0.1mm may cost 40% more than one with ±0.3mm on non-critical features.
Fix: Mark critical dimensions (e.g., hole-to-hole for mounting) with tighter tolerances. Use general tolerances (e.g., ±0.3mm) for the rest.
5.2 Ignoring Bend Radius and Springback
A common drawing error is specifying a bend radius smaller than the material thickness. For steel, the minimum inside bend radius is typically 1.0× material thickness. For aluminum, it is 1.5×. Smaller radii cause cracking.
Fix: Ask your supplier for a bend radius chart. Include it in your drawing notes.
5.3 Not Specifying Surface Finish
A raw steel part that is not painted or plated will rust within weeks. A stainless steel part that is not passivated may have reduced corrosion resistance.
Fix: Specify the surface treatment (e.g., powder coating, zinc plating, anodizing, passivation, or no treatment) and the required finish quality (e.g., smooth, textured, or matte).
6. Frequently Asked Questions
Q: What is the typical lead time for precision sheet metal fabrication?
A: For standard parts (laser cut + bend), lead time is typically 2–4 weeks including tooling setup. For complex assemblies with welding and finishing, expect 4–8 weeks. Confirm with the supplier for your specific part.
Q: How do I know if my part design is manufacturable?
A: A good supplier will provide a DFM (Design for Manufacturing) review. They will flag issues like sharp corners, thin walls, or impossible bend radii. Ask for this review before production.
Q: What is the minimum order quantity (MOQ) for custom sheet metal parts?
A: MOQ varies by supplier and part complexity. For simple parts, MOQ may be 50–100 units. For high-precision or complex parts, MOQ may be 200–500 units. Ask directly.
Q: Can I get a prototype before mass production?
A: Yes. Most suppliers offer prototype services (single unit or small batch). Prototype lead time is typically 1–2 weeks. The prototype may use different tooling than production, so confirm the final production tolerance separately.
7. Next Steps: How to Start the Conversation
If you are looking for a precision sheet metal fabrication partner, here is a practical approach:
- Prepare your drawing: Include material, thickness, tolerance callouts, surface finish, and any relevant standards.
- Send an RFQ to 3–5 suppliers: Include your drawing, estimated annual volume, and target lead time.
- Evaluate responses: Compare not just price, but also tolerance capability, material sourcing, and quality certifications.
- Request a sample or first article: Before committing to a production order, ask for a sample part or first-article inspection report.
- Negotiate terms: Discuss payment terms (e.g., 30% deposit + 70% before shipment), MOQ, and delivery schedule.
For more information on our custom sheet metal fabrication capabilities, including tolerance ranges and material options, please contact our sales team with your part drawing. We will provide a detailed quotation and DFM feedback within 48 hours.
This guide is intended as a general reference for B2B procurement. Specific tolerance and quality requirements should be confirmed with the supplier based on your application and regulatory environment.
